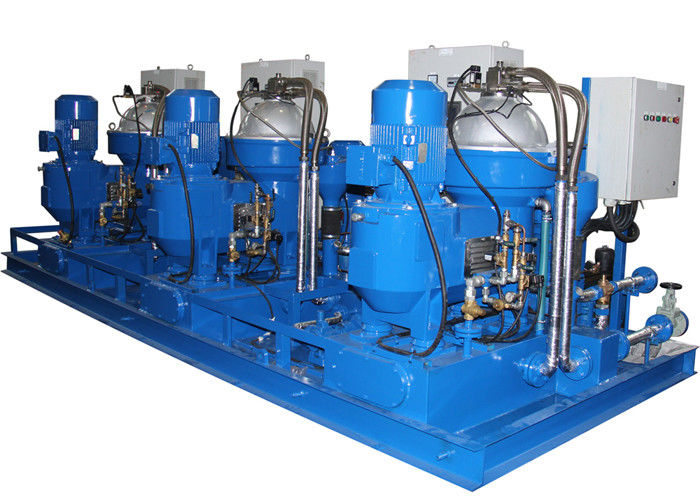

15Kw Fuel Oil Three Phase Centrifuge Waste Oil Purification Machine

15Kw Olej opałowy trójfazowa wirówka Oczyszczanie oleju Maszyna

  • High Light

    3 phase decanter centrifuge

    ,

    three phase centrifuge

  • Opis
    Wirówka talerzowa separatora wody olejowej
  • aplikacji
    DO, FO, LO, Obróbka olejów odpadowych
  • Pojedyncza maszyna odpowiadająca
    MOPX-213
  • Pobór mocy
    15KW
  • Struktura
    verticle
  • Rodzaj rozładowania
    Zmienne rozładowanie
  • Nazwa handlowa
    Peony
  • Place of Origin
    China
  • Nazwa handlowa
    Peony
  • Orzecznictwo
    CCS, ISO
  • Model Number
    PDSD14000
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard export packing
  • Delivery Time
    45days
  • Payment Terms
    TT, LC
  • Supply Ability
    100sets per month

15Kw Olej opałowy trójfazowa wirówka Oczyszczanie oleju Maszyna

China Product 3 Phase Centrifuge Waste Oil Purification Machine Fuel Oil Centrifuge



Description:



Model PDSD14000 is module type, which is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station, so as to reduce wear of the diesel engine and other machine, and prolong engine life.

The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.



Advantages:



1. Moisture sensor(No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2. Our separator is with low power consumption and light weight, which is in accordance with the requirements of the national industry.
3. High rotating speed ensure the best separation effect.
4. The new type seamless belt drive(No second tensioning required) brings more reliable structure and more simplified mechanical structure.
5. Bowl with full hydraulic structure brings more thorough slage discharge, more stable and reliable performance.



Main Technical Specification:



Discharging type

Variable discharging
Ratedcapacity L/h 14000(0# diesel oil)
Rotating speed RPM 7800
Output pressure of clear oil Mpa ≤0.2
Output pressure of sewage Mpa ≤0.3
Motor power Kw 22
Full volume of the slag cavity L 2



Other oil capacity reference chart:



Oil types

Fuel oil

Lubrication oil

Fuel oil

Heavy fuel oil

SAE30, 40

Detergence oil

Steam turbine oil

Kinematical viscosity(mm2/s)

1.9-5.5

5.5-24

120

180

380

100-120

61.2-74.8

40°C

50°C

40°C

40°C

Density/(kg/m3)(20°C)

< 900

900-991

880-900

< 900

Separating temperature

(°C)

normal temperature, 40-60 best

90-98

80-95

Recommended capcity

(l/h)

17500

14000

7700-8400

6300-7000

4900-5600

7000-8400

3500-4200

11200-11900

Note: Reserve the right to change specifications without prior notification.
